Color Wave Industries

ME Dyes

Yellow 5GL conc.	100	90	H	60	70	S	S	S	P	S	S	4	4-5	5	4-5	3-4	4	4	Useful product for Yellows & Greens.
G. Yellow MERL conc.	100	90	H	60	75	S	S	S	P	S	S	4	4-5	5	4-5	3-4	4	4	Important trichromatic component.
Orange ME2RL conc.	60	10	H	60	70	S	S	S	P	S	S	3	4	4	4	3	3	3	Highly Productive & Bright Orange.
Red ME4BL conc.	90	70	H	60	75	S	S	S	P	S	S	3-4	4	4-5	4-5	3-4	4-5	4-5	Important trichromatic component.
Red ME6BL	30	10	H	60	70	S	S	S	P	NS	NS	3	4	4	4	3-4	3-4	3-4	Highly Productive.
Red HRBL conc.	100	100	H	60	70	S	S	S	P	NS	NS	3	3-4	4-5	5	3-4	3-4	3	Highly exhaustive & Economical Red for medium & Dark shades.
Blue BRC 150%	50	25	H	60	75	S	S	NS	G	S	NS	4	4-5	4-5	4	3	4	4	Useful Blue for light shades.
Blue BF	150	150	H	60	75	S	S	S	G	S	S	3	4	4-5	5	3	4	4	Useful Blue for medium & dark shades. Suitable for Post Mercerisation.
Blue 4GX conc.	150	150	H	60	75	S	S	S	G	S	S	2-3	3	4-5	5	3	4	4	Economical Blue for deep & extra deep shades.
Black HFGR	100	100	H	60	85	S	S	S	P	S	S	-	3-4*	4	4-5	4	4	4	Economical basis for Black shades.
Deep Black N-150	100	100	H	60	85	S	S	S	G	S	S	-	3-4*	4	4-5	4	4	4	Dischargable Black dye.

'ME'-dyes application

.Features :.
1.Good dyeing performance.
2.Excellent wet fastness properties..
3.Ease of washing off..
4.Suitable for dyeing, padding & printing..
5.Excellent levelling, better reproducibility, high exhaustion and high fixation..

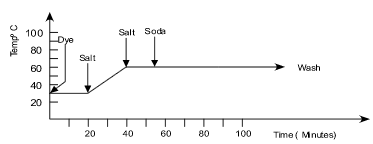

Exhaust Dyeing : Standard Method :

Minutes	Load machine-Run liquor and/or fabric. Set the dye bath at 30°C. Add pre dissolved dye.
20	Add half of pre dissolved Glauber's salt. Continue dyeing while rising the temperature to 60-65°C.
20	Add reminder of Glauber's salt. Continue dyeing at 60-65°C.
15	Add soda ash solution. Continue dyeing at 60-65°C.
60	Continue dyeing at 60-65°C. Wash.

Salt & Alkali Requirement :

Depth of Shade %	Salt gms/lt.	Soda Ash (gms/lt.)
Up to 0.5	30	10
0.5 - 1.0	40	15
1.0 - 2.0	50	15
2.0 - 4.0	60	20

Disclaimer Note :

This Information is furnished without warranty, expressed or implied, except that it is accurate to the best knowledge of Color Wave Industries. The data on this sheet relates only to the specific material designated herein. Color Wave Industries assume no legal responsibility for use or reliance upon these data.

PROCESS	STAGE 1	STAGE 2	STAGE3	STAGE 4	STAGE 5	STAGE 6
Short Time Pad-Batch	VS-Dyestuff +Sod.Silicate (100-106°Tw) 100 gm/lt. + Caustic Soda (72°Tw) 15 ml/lt.	4 hrs. Batch	Wash	-	-	-
One Bath Pad-Batch	VS-Dyestuff + Sd. Silicate (100-106°Tw) 100 gm/lt. + Caustic Soda (72Tw) 5-10 ml/lt.M-Dyestuff + Sod. Bicarbonate & Soda ash mix (4:1) 5-30 gms/lt. H, HE & ME - Dyestuff + Caustic Soda 15 gm/lt.+ Glauber's Salt 10-30 gm/lt.	24 hrs. Batch 24 hrs. Batch 24 hrs. Batch	Wash Wash Wash	- - -	- - -	- - -
Two bath Pad-Batch	VS - Dyestuff	Dry 1-3 min.At 150-200°C	Chemical PadGlauber Salt-250 gm/lt. + Caustic Soda 30 ml/lt.	2-4 hrs Batch	Wash	-
Pad-Dry-Stream	VS - Dyestuff + Urea 50 gm/lt. + Sod. Bicarbonate 20-50 gm/lt. + Resist Salt 10 gm/lt.M-Dyestuff + Urea 50-200 gm/lt. + Sod. Bicarbonate 5-10 gm/lt.H, HE & ME - Dyestuff + Soda ash 10 gm/lt. + Resist Salt 10 gm/lt.	Dry Dry Dry	Steam 3-4min. at 100°-150° CSteam 7 min. at100°-105° CSteam 7 min. at100°-105° C	Wash Wash Wash	- - -	- - -
Pad -Dry-Bake	M - Dyestuff + Urea 50-200 gm/lt. + Sod. Bicarbonate 5-10 gm/lt. H, HE & ME - Dyestuff + Urea 200 gm/lt. + Soda ash 10-20 gm/lt.	Dry Dry	Bake 1 min. at 200° C or at150° C Bake 1 min. at 200° C or min. at 150° C	Wash Wash	- -	- -
Pad-Dry-Pad-Stream	M - Dyestuff + Resist Salt 10 gm/lt. H, HE & ME Dyestuff + Resist Salt 10 gm/lt.	Dry Dry	Chemical Pad Glauber salt-200-300 gm/lt. + Caustic Soda 2 gm/lt. Chemcial Pad Glauber Salt-200-300 gm/lt. + Caustic Soda 10-15 gm/lt.	Dry Dry	Stream 7-10 min at 100°-105° C Stream 7-10 min at 100°-105° C	Wash Wash
